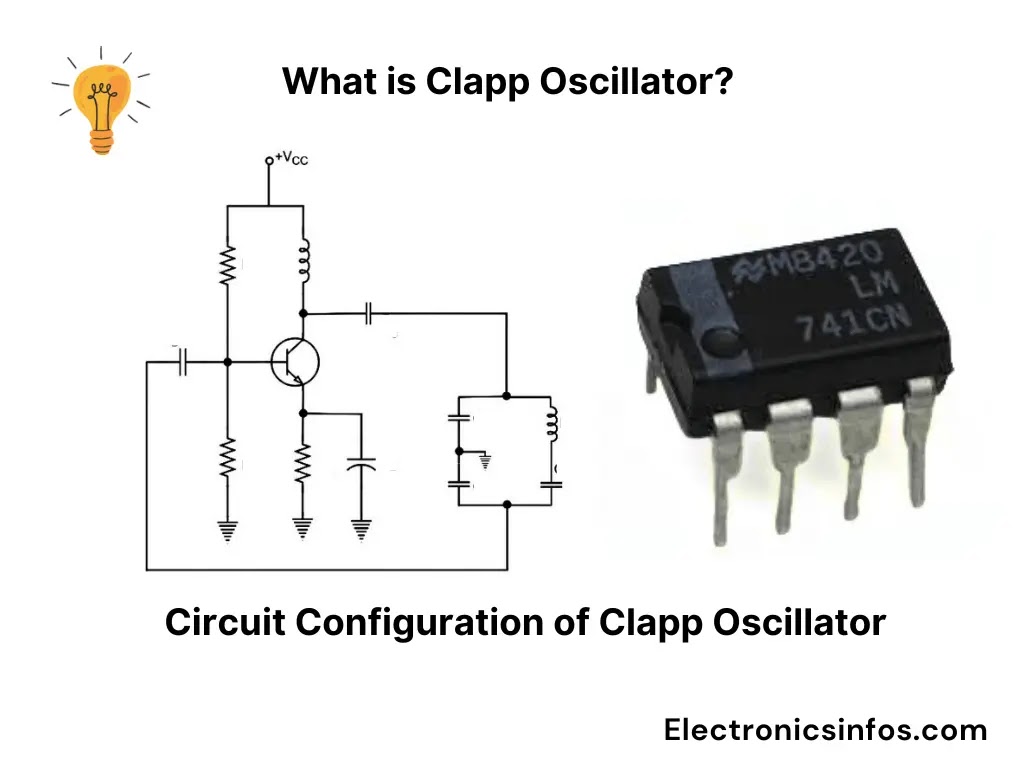

## What is a Clapp Oscillator?

The Clapp Oscillator is an electronic oscillator circuit that generates sinusoidal signals, it is widely used in RF (radio frequency) applications.

It is a variation of the Colpitts oscillator with improved frequency stability.it is beneficial in precise frequency generation.

## Working Principle of Clapp Oscillator

The Clapp Oscillator operates based on the principle of positive feedback and resonance in a tuned LC (inductor-capacitor) circuit.

The LC circuit (comprising the inductor L and capacitors C1, C2, and C3) resonates at a particular frequency determined by the values of L and C.

A portion of the output signal is fed back to the input through the capacitive divider (C1 and C2), ensuring sustained oscillations.

The transistor amplifies the feedback signal, compensating for energy losses in the circuit, and maintains continuous oscillation. The oscillation frequency f is given by the formula

Ctotal = C1, C2, and C3 are the capacitances of the capacitors in the circuit.where L is the inductance and C1, C2, and C3 are the capacitances in the circuit.

## Key Features Of Clapp Oscillator

- The Clapp Oscillator offers better frequency stability.
- It utilises a capacitive voltage divider for feedback, which helps stabilize the frequency.
- The frequency can be adjusted by varying the inductance or capacitance of the circuit.
- it is Ideal for generating high-frequency signals used in radio transmitters, receivers, and other RF circuits.
- There are Simple designs with relatively few components.

## Applications of Clapp Oscillator

- It is used in radio transmitters and receivers to generate stable RF signals.
- It is employed in frequency synthesizers for precise frequency control.
- Clapp oscillators are used in signal generators and other test equipment requiring stable frequency sources.
- Integral to communication systems where stable carrier signals are necessary.

## Conclusion

The Clapp Oscillator is a reliable and stable oscillator circuit widely used in RF applications. it is due to its improved frequency stability and simple design.

it achieves better control over the oscillation frequency. it is ideal for applications requiring precise and stable frequency generation. Whether used in communication systems, test equipment, or RF signal generation,

## Frequently Asked Questions – FAQs

**What is a Clapp Oscillator?**

A Clapp oscillator is a type of electronic oscillator that generates sinusoidal waves. It is an improved version of the Colpitts oscillator, with a third capacitor added in series with the inductor to enhance frequency stability.

**How does a Clapp Oscillator work?**

A Clapp oscillator uses a combination of inductors and capacitors to produce oscillations. The key components include an inductor (L) and three capacitors (C1, C2, and C3). The frequency of oscillation is determined primarily by these reactive components.

#### What is the main advantage of a Clapp Oscillator over a Colpitts Oscillator?

The main advantage of a Clapp oscillator is its improved frequency stability. The additional capacitor (C3) helps to reduce the influence of transistor or tube capacitances on the frequency of oscillation, making the frequency more stable.

#### What are the typical applications of Clapp Oscillators?

Clapp oscillators are used in applications requiring high-frequency stability, such as RF signal generation, frequency synthesis, and communication systems.
