What are vibration isolators?

    Vibration isolators reduce or eliminate the transmission of vibrations between two connected structures or systems.

    What are vibration isolators?

    How does a vibration isolator work?

    A vibration isolator works by reducing the transmission of vibrations. it reduces the shocks from a vibrating source to an isolated structure.

    The fundamental principle is to introduce elements that absorb the vibrational energy. it minimises the amount of energy that reaches the isolated component.

    The natural frequency of an isolator is the frequency at which it tends to vibrate when disturbed. For effective isolation, the natural frequency of the isolator should be much lower than the frequency of the vibrations being isolated.

    How to install vibration isolators?

    Installing vibration isolators involves several steps to ensure they effectively reduce the transmission of vibrations from the vibrating source to the isolated structure or equipment.

    Identify the Source of Vibration

    First, you need to Determine the structure that is generating vibrations and Assess the vibration frequencies to choose the appropriate type of isolator.

    Select the Appropriate Isolator

    After you need to Choose the type of isolator (e.g., elastomeric, metal spring, air spring, wire rope, viscous dampers, negative stiffness).

    Prepare the Installation Site

    Ensure the surface where the isolators will be mounted is clean, level, and strong enough to support the load. Remove any debris, oil, or dirt that might interfere with the installation.

    Determine the Isolator Placement

    Identify the mounting points on the equipment or structure. Ensure the isolators are evenly distributed to balance the load and maximize effectiveness.

    Test the Installation

    Turn on the equipment and observe the performance of the isolators. Check for any excessive movement or misalignment.

    What is the Purpose of Vibration Isolators?

    • The purpose of vibration isolators is to reduce or eliminate the transmission of vibrations from one part of a system to another.
    • It enhances the comfort and safety of operators.
    • it reduces the risk of damage to nearby structures.
    • it minimizes disturbance in environments sensitive to vibrations.
    • By minimizing vibrations, isolators also help in reducing noise generated by machinery and equipment.
    • Isolators protect sensitive equipment from damage due to excessive vibrations.
    • Vibration isolators help protect sensitive equipment from the damaging effects of excessive vibrations.
    • It extends the lifespan of machinery and electronic equipment.
    • Isolators improve the performance of precision instruments and machinery by reducing the interference caused by vibrations.
    • By damping vibrations, isolators also contribute to noise reduction.
    • Reducing vibrations enhances the safety of both equipment and personnel.
    • In applications like automotive and aerospace, vibration isolators enhance passenger comfort.
    • Isolators help maintain the structural integrity of buildings and other structures subjected to dynamic loads.
    • Many industries have standards and regulations regarding acceptable levels of vibration and noise.
    • By isolating vibrations, machines can operate more efficiently and with less wear and tear.

    Types of Vibration Isolators

    There are several types of vibration isolators including
    • Elastomeric Isolators
    • Metal Spring Isolators
    • Air Spring
    • Wire Rope Isolators
    • Viscous Dampers

    Elastomeric Isolators

    When a vibrational force is applied, the elastomer deforms and dissipates the energy.

    There are two types of elastomeric isolators including Rubber Mount and Neoprene Mount. Rubber mount Made from natural or synthetic rubber.

    Elastomeric Isolators

    it absorbs dampening vibrations through its elastic properties.it is commonly used in automotive engines, machinery, and HVAC systems.

    The other type is made from neoprene. it has better resistance to oils, chemicals, and weather conditions.it is used in Industrial machinery, compressors, and equipment exposed to harsh environments.

    Material Properties

    • Natural Rubber: excellent flexibility
    • Neoprene: ideal for harsh environments.
    • Silicone: Suitable for high-temperature applications
    • Urethane: Known for its high load-bearing capacity

    Metal Spring Isolators

    These isolators use metal springs to absorb and dampen vibrations. The springs compress and expand in response to vibrations.

    Metal Spring Isolators
    There are two types of Metal spring isolators: Coil Spring and Leaf spring Isolators. metal spring isolator Use metal coil springs to provide isolation. They can handle heavy loads and large deflections. it is used in Heavy machinery and HVAC systems.

    The Leaf spring isolator Consists of flat springs arranged in layers. They offer linear or non-linear load-deflection characteristics.it is used in  Automotive suspension systems and industrial applications.

    Material Properties

    Neoprene Bellows: Durable and resistant to wear
    Reinforced Fabric: Provides additional strength and durability.

    Air Springs

    These isolators use air-filled bladders to provide damping. Air springs Use compressed air within a flexible rubber. Air pressure can be adjusted to change stiffness.

    Air Springs

    The air inside the bladder compresses in response to vibrations. it absorbs the energy. The bladder's elasticity helps to dissipate the energy.

    Wire Rope Isolators

    wire rope isolators are Made of stainless steel wire. it wound it into helical shapes and mounted between metal plates.

    Wire Rope Isolators

    They provide multi-directional isolation. Marine, military, aerospace, and industrial applications where durability and ruggedness are essential.

    Material Properties

    Stainless Steel Wire Rope: high strength, corrosion resistance, and durability.
    Aluminum or Steel Frames: additional structural support.

    Design Variations

    • Helical Wire Rope
    • Nested Wire Rope
    • Custom Configuration

    Viscous Dampers

    viscous dampers use a fluid(such as silicone or hydraulic oil) to dissipate vibrational energy. They are effective at reducing resonance in Buildings and structures, automotive suspensions, and applications requiring high damping.

    Viscous Dampers


    Viscous Fluid (Silicone or Hydraulic Oil)
    Sealed Housings

    Gel Isolators

    Gel isolators use gel materials to absorb vibrations through their viscoelastic properties. They provide excellent damping and isolation. it is used in Electronic devices, medical equipment, and sensitive instrumentation.

    Gel Isolators

    Foam Isolators

    Foam Isolators are Made from polyurethane or other foams. These isolators provide damping and isolation through their cellular structure. it is used in electronics and applications where space and weight are constraints.

    Foam Isolators

    Metal Mesh Isolators

    metal mesh isolator are Consist of layers of metal mesh that provide damping and isolation. They are highly durable and can withstand extreme conditions. Metal mesh isolator used in  Aerospace, military, and heavy industrial applications.

    Metal Mesh Isolators

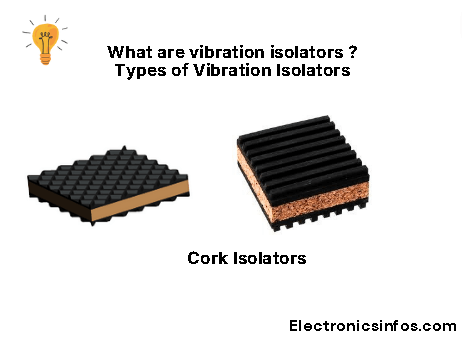

    Cork Isolators

    Cork isolators are Made from cork material. it offers natural damping properties for enhanced performance. it is used in household appliances and applications requiring natural materials.

    Cork Isolators

    Magnetic Isolators

    Magnetic isolator Use magnetic fields to provide contactless isolation. They are suitable for applications requiring high precision and minimal mechanical wear. they are used in Precision instruments, scientific equipment, and vibration-sensitive applications.

    Hydraulic Isolators

    Hydraulic Isolators Use fluid-filled chambers to provide damping and isolation. They can handle large loads and provide excellent energy dissipation. Heavy machinery, automotive suspensions, and applications requiring high damping and load capacity.

    Hydraulic Isolators

    Pneumatic Isolators

    pneumatic isolators are Similar to air springs, but they use compressed air in a controlled manner.it is used in Precision manufacturing, optical tables, and applications requiring fine control of isolation properties.

    Pneumatic Isolators

    Negative-Stiffness Vibration Isolators

    Negative-stiffness vibration isolators are advanced devices designed to achieve high vibration isolation levels by leveraging the negative stiffness concept.

    Traditional isolators rely on positive stiffness elements like springs or elastomers. negative stiffness isolators use mechanisms that create a force opposing the direction of displacement. It effectively reduces the system's natural frequency.

    Key Features of Negative Stiffness Isolator

    • High-Strength Alloys
    • Elastomers
    • best Damping Materials
    • Hybrid Designs
    • Ultra-Low Natural Frequency
    • High Isolation Efficiency
    • Passive Operation

    Working Principle of Negative-Stiffness Vibration Isolators

    Negative stiffness isolators work where the stiffness decreases with increasing displacement. it effectively creates a "negative" stiffness region. This is achieved through mechanisms such as:

    Pre-compressed Springs

    Springs are pre-compressed to a point where their restoring force opposes displacement.

    Flexural Mechanisms

    Flexures designed to buckle under load can provide a negative stiffness effect.

    Linkage Systems

    Mechanical linkages that change configuration with displacement can create regions of negative stiffness.

    Selection Criteria of Vibration Isolators

    The selection of vibration isolators is a critical decision in the design and maintenance of machinery. When selecting the right vibration isolator for any application, consider different parameters

    Weight, Size, and Center-of-Gravity of the Equipment

    The physical characteristics of the equipment play a significant role in isolator selection. The weight influences the type and size of the isolator. it must be capable of supporting the load without compromising performance.

    The size and shape of the equipment affect the design of the isolator. it especially concerning attachment points and spatial constraints.

    Types of Dynamic Disturbances

    This includes identifying whether the equipment will be sinusoidal vibrations, random vibrations, or shock loads.

    For instance, military electronics often undergo random vibration testing by specifications like MIL-STD-810, which emphasizes the importance of tailoring the isolator to the application's specific needs.

    Static Loadings Beyond Supported Weight

    Isolators must also accommodate static loads that may not be directly related to the equipment's weight. An example is the additional load imposed by an aircraft during a high-speed turn.

    Allowable System Response

    The system's allowable response to vibrations must be known to choose an isolator that can effectively mitigate potential damage.

    This involves understanding the equipment's tolerance to dynamic stresses.

    Environmental Considerations

    The operating environment of the equipment can influence the choice of isolator. Factors such as temperature, humidity, and exposure to chemicals or oils can affect the material and design of the isolator.

    Benefits of Vibration Isolators

    • They ensure accurate measurements and operations in scientific and medical equipment.
    • It improved the accuracy and performance of sensitive equipment by reducing vibrations.
    • vibration isolators Extend the lifespan of machinery and equipment by reducing wear and tear.
    • It provides a smoother ride in vehicles and aircraft to reduce driver and passenger fatigue.
    • It reduced the risk of structural damage and accidents.
    • it creates a quieter work environment.
    • It prevents structural fatigue and failure in buildings and bridges.
    • It prevents damage due to vibrational stress.
    • It ensures compliance with industry standards and regulations.

    Applications of Vibration Isolators

    • They are used in pumps, compressors, generators, and motors to reduce vibration transmission.
    • it improves machinery performance and longevity.
    • it enhances vehicle comfort and reduces noise and vibrations.
    • it is used in aircraft engines, avionics, and other components to ensure reliable operation.
    • vibration isolators are Implemented in HVAC systems, elevators, and building structures to mitigate vibration from earthquakes.
    • it is essential for isolating vibrations in sensitive equipment like microscopes, and semiconductor manufacturing tools.
    • They are commonly used in off-highway vehicles, construction, and industrial machines.


    In conclusion, vibration isolators provide solutions that safeguard equipment from extreme vibration. it enhances the quality of work environments. As technology advances, we can expect to see even more efficient vibration isolation systems.

    Frequently Asked Questions – FAQs

    What are Vibration Isolators?

    Vibration isolators reduce the transmission of vibrations between two connected structures.

    Why are Vibration Isolators Important?

    Vibration isolators are important because they help
    • Protect equipment
    • Enhance performance
    • Improve comfort
    • Reduce noise

    How Do Vibration Isolators Work?

    Vibration isolators work by absorbing vibrational energy. They consist of a flexible material that can deform under vibrational loads. it reduces the transmission of vibrations to the protected object.

    What Factors Should Be Considered When Selecting Vibration Isolators?

    following factors are considered when selecting vibration isolators
    • Load Capacity
    • Frequency range
    • Environmental conditions
    • Space constraints
    • Type of vibrations
